GeoModelVisualization¶

GeoModelVisualization (gmex) is a 3D interactive visualization tool that allows you to display, navigate and debug complex detector geometries as the HEP experiments ones.

Examples¶

In order to launch gmex you could simply type:

./gmex

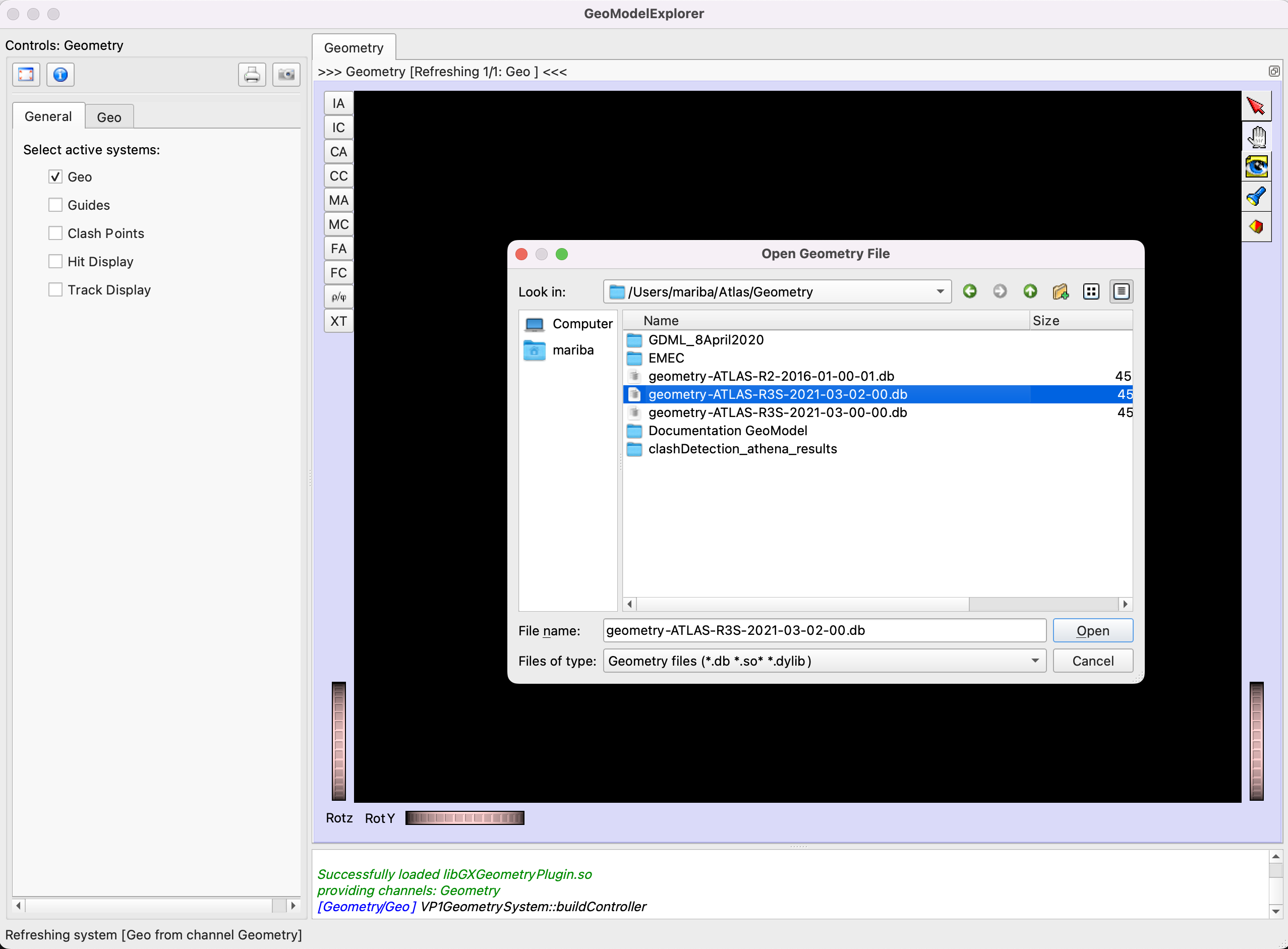

This will open a dialogue window where you will be able to select a SQLite (.db) file that you want to display (see Figure 1).

GmexGui — Figure 1: Gmex GUI with dialogue window to select the geometry to be visualized.

Alternatively you can feed the geometry to gmex directly via the command line. For example:

./gmex myGeometry.db

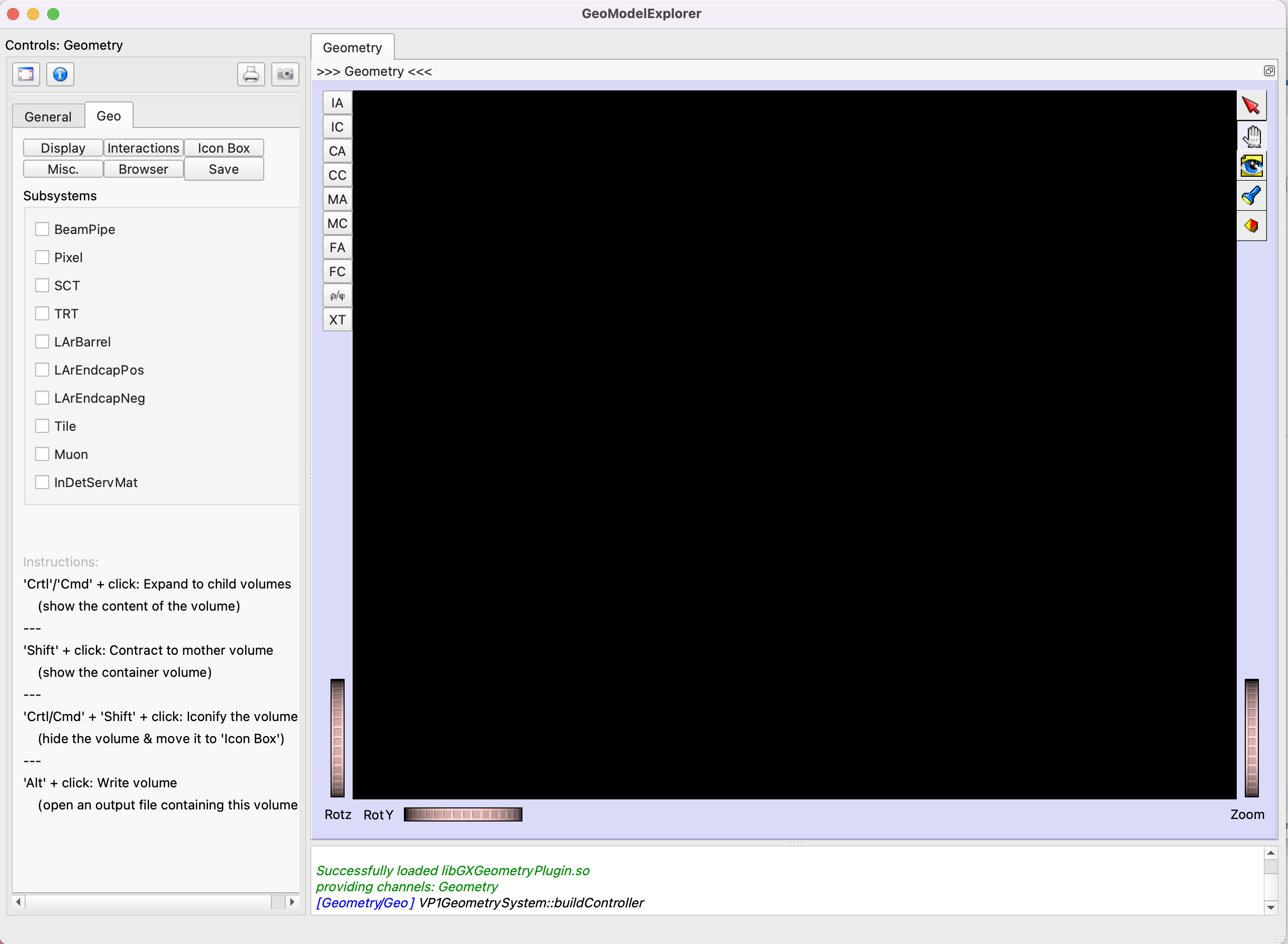

Once the geometry is selected, by clicking on the Geotab on the left, gmex will diplay a list of all the subdetectors present in the loaded geometry, as shown in Figure 2

In order to visualize all or some of them you have to click on the respective checkbox and click on the eye icon on the right (3rd icon from the top, in the right panel).

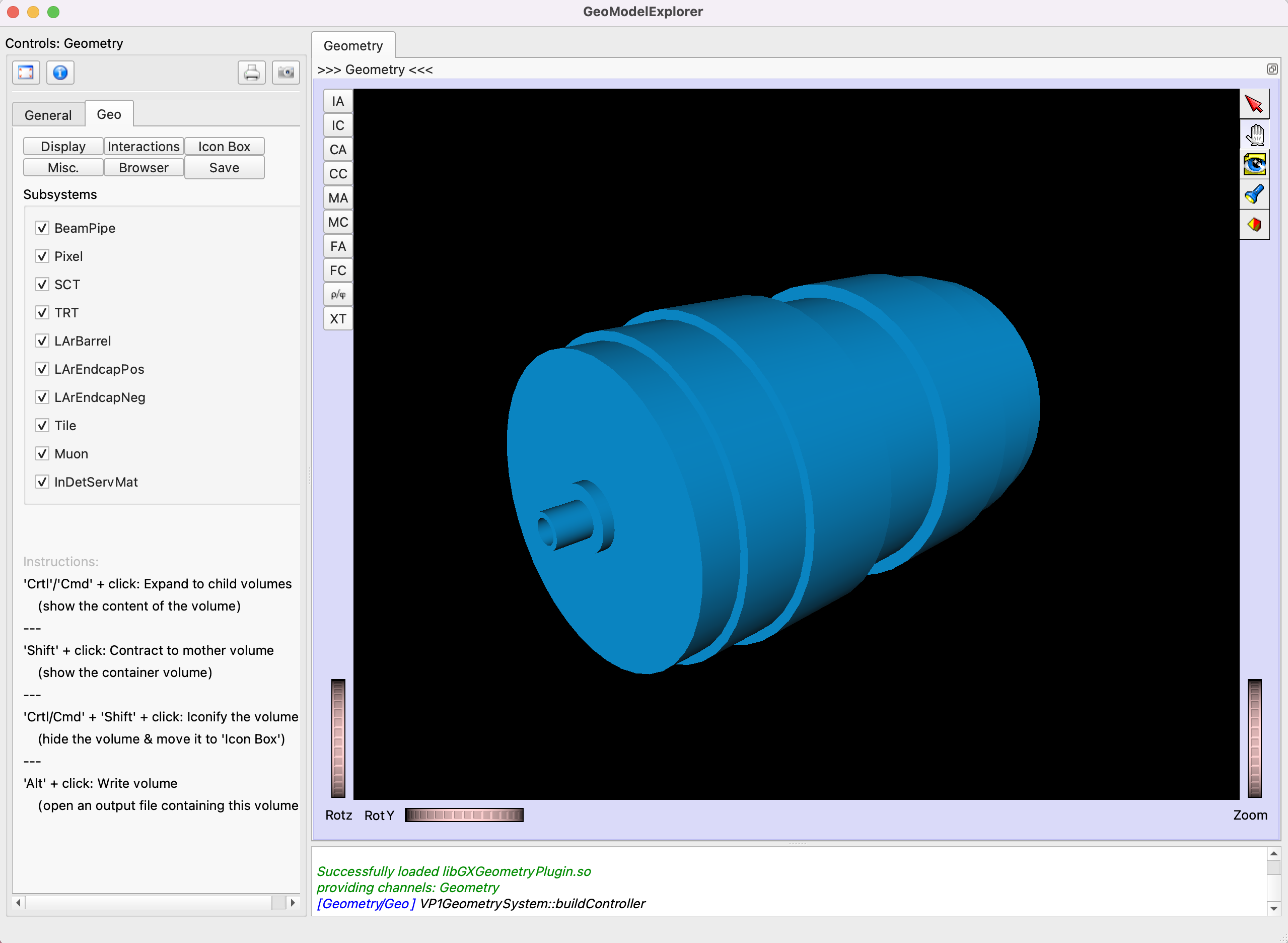

SelectedGeometry — Figure 3: Visualization of the selected geometry.

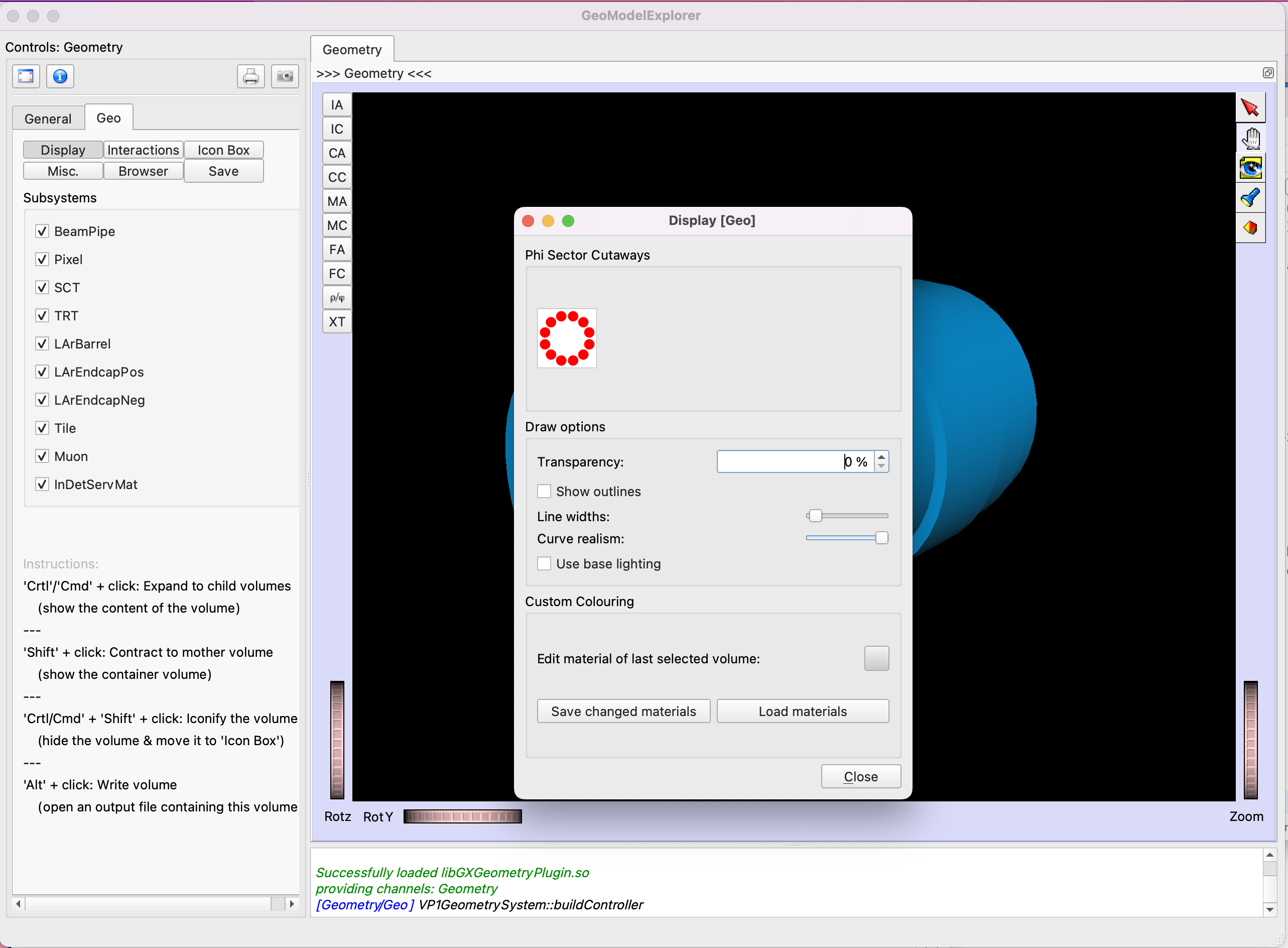

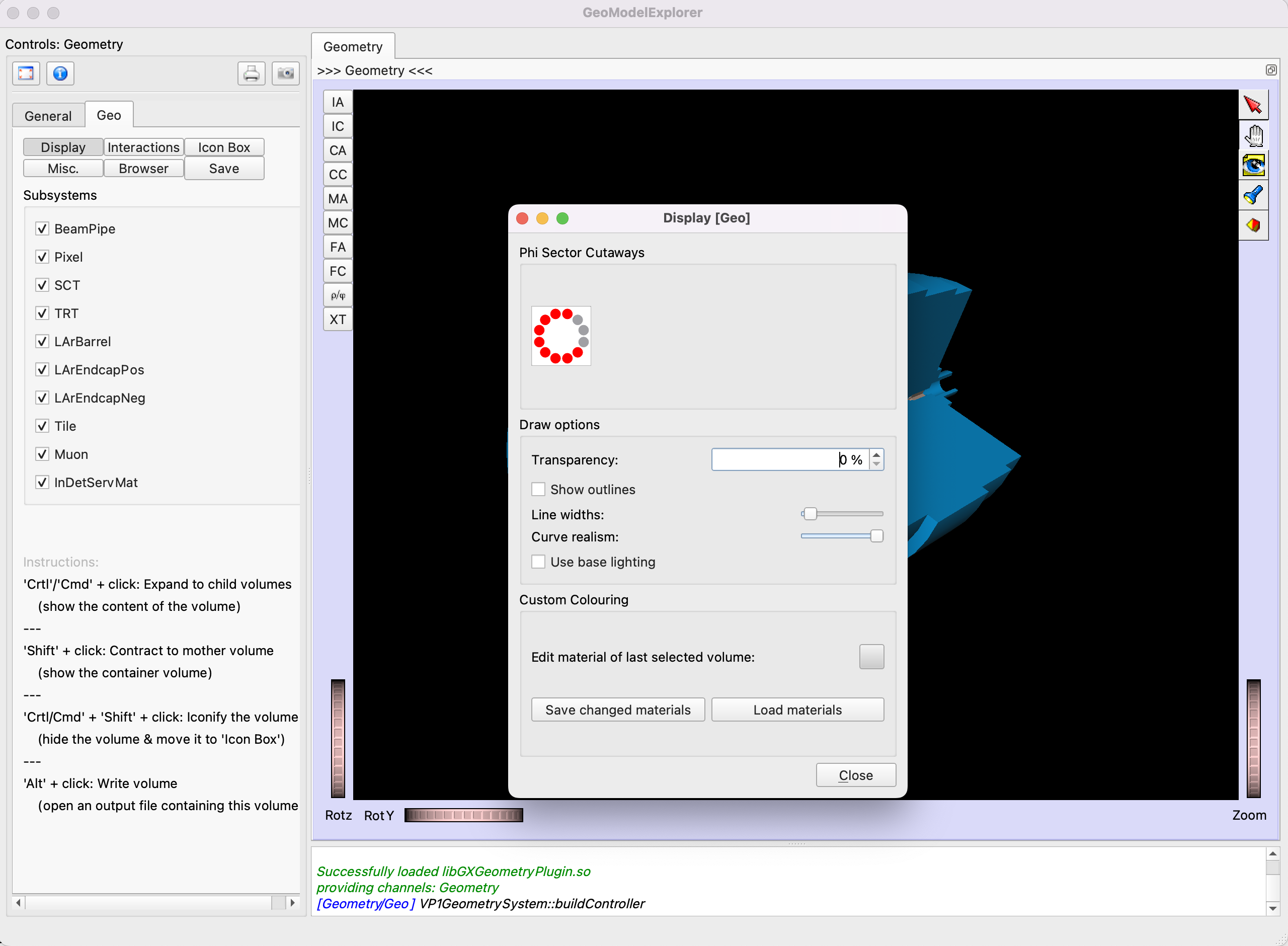

Now that you have loaded your geometry you can start investigating it. A good way to improve the visualization experience is to apply Phi sector cutouts. To do that you have to click on the Display tab under Geo (Figure 4), unselect a few of the phi sector cutaways (Fig 4a) and then click Close.

DisplayTab — Figure 4: `Display` tab under `Geo`.

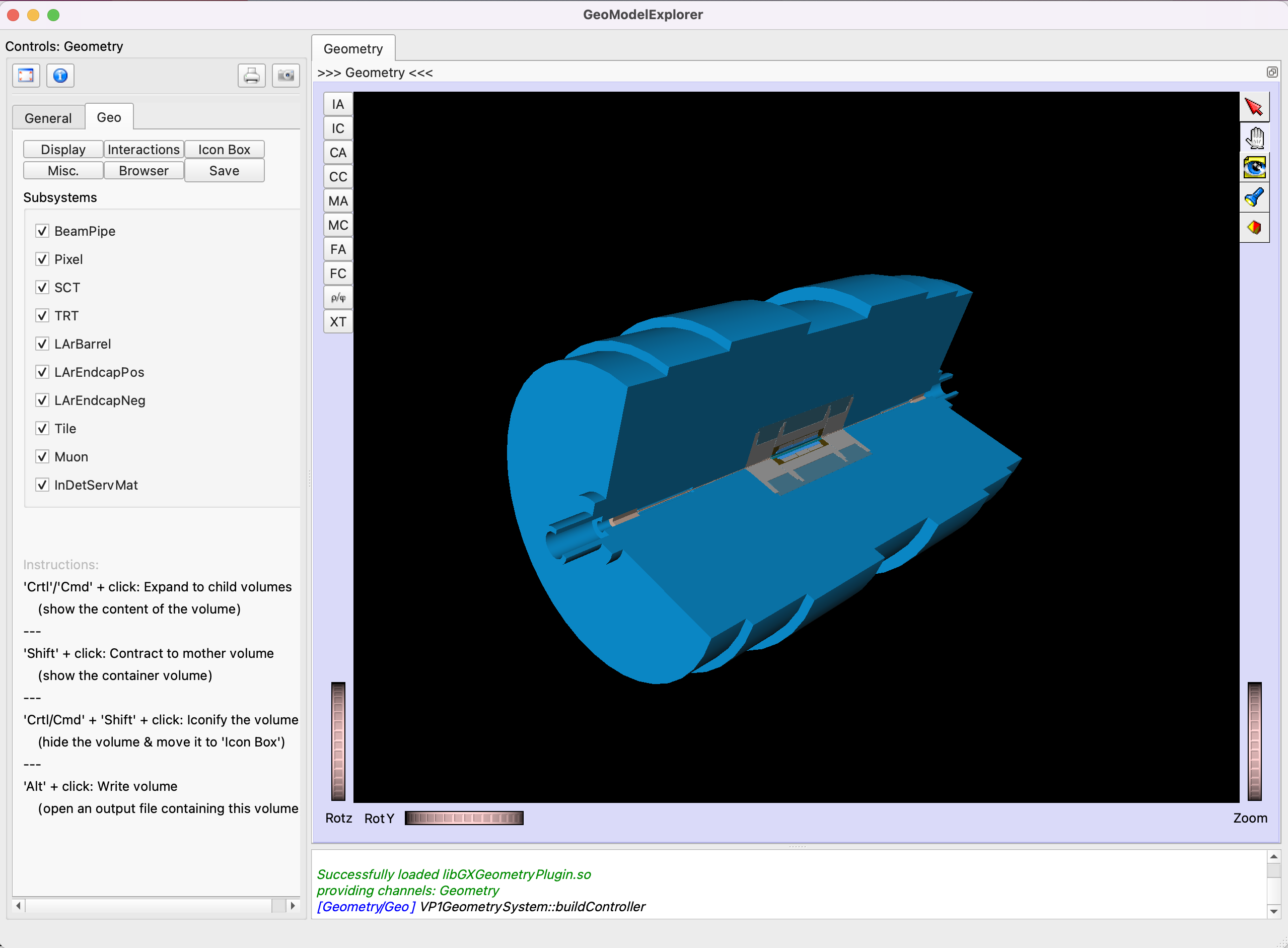

At this point you have a cutaway view of your detector (Fig 5) and you can start investigating it by “opening” it.

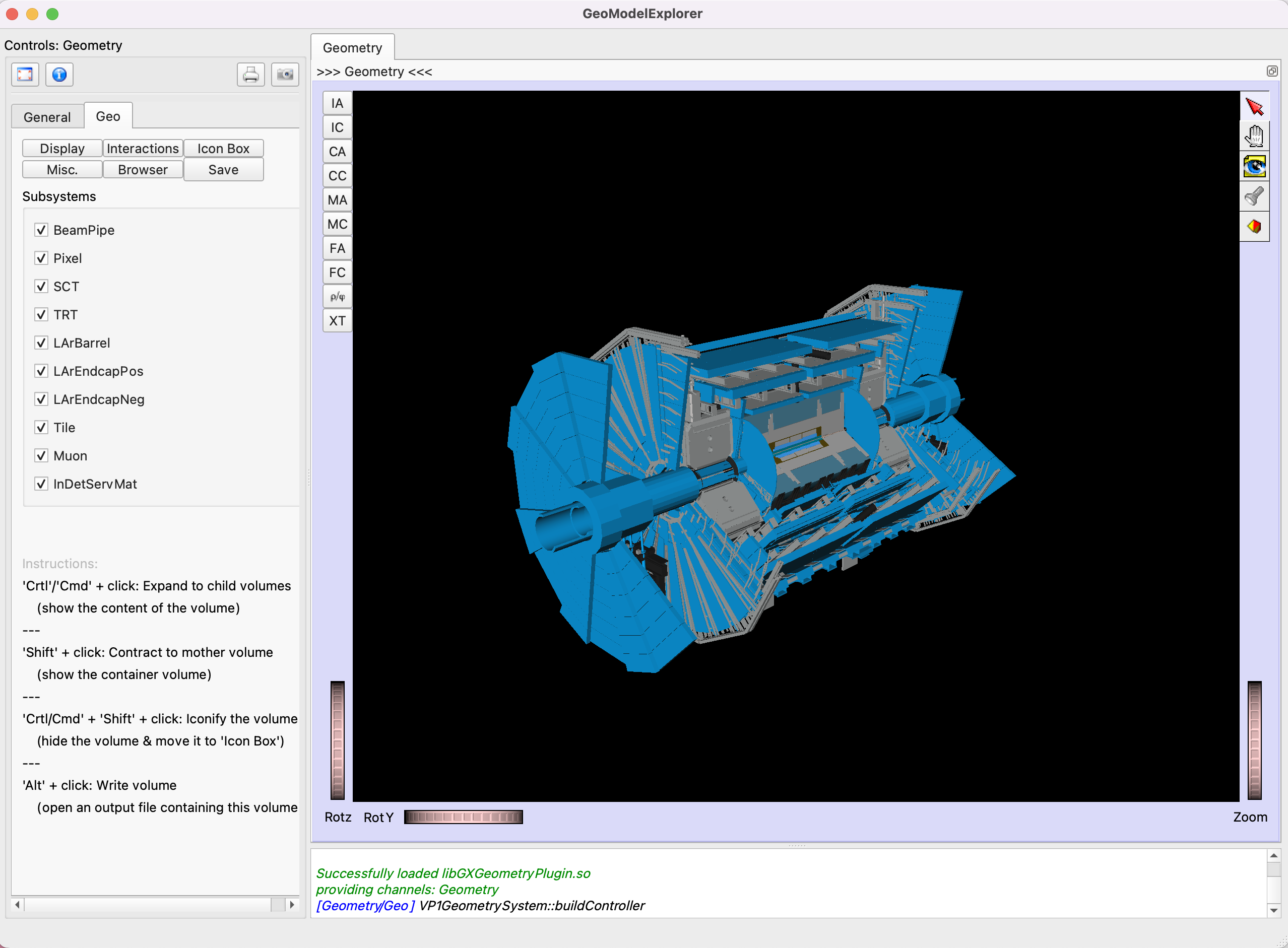

In order to do so you can follow the instructions written on the bottom part of the left panel. For instance, if you want to expand to child volumes you will have to use the following combination ‘Ctrl/Cmd’+click. In this way you will remove the first layer of your geometry and be able to inspect its content (see Fig. 6).

TrackDisplay — Figure 6: Cutaway view of the ATLAS detector without the first mother volume layer.
