GeoModelClash

GeoModelClash (gmclash) allows to run geometry overlap checks on a geometry file specified as input with the -g flag. The clashes report is given in an output json file (default: gmclash_report.json).

Run the executable with the --help option to see the available options:

-g :   [MANDATORY] the Geometry file name [.db/.gdml/.dylib/.so]
-r :   [OPTIONAL] root volume name (default: the Geometry top volume)
-o :   [OPTIONAL] clashes report file name (default: gmclash_report.json)
-t :   [OPTIONAL] tolerance threshold value in mm (default: 0)
-n :   [OPTIONAL] number of random points (default: 1000)
-v :   [OPTIONAL] verbose output (default: off)

By default gmclash starts the analysis from the Geometry top volume. Alternatively the user can specify a different root volume name by using the -r option. The tolerance threshold value is by default zero, but that value can be modified with the -t option. Another parameter that can be tuned is the number of random points that are shoot by gmclash to determine the overlapping points. By default it is set to 1000, but if the user wants to increase the precision of the report, this number can be increased with the -n option.

The output json file format is the following:

"distance[mm]": 51.21328179620343,
"typeOfClash": 1,
"volume1CopyNo": 16969,
"volume1EntityType": "G4Tubs",
"volume1Name": "LAr::Barrel::Cryostat::Cylinder::#13Phys",
"volume2CopyNo": 16969,
"volume2EntityType": "G4UnionSolid",
"volume2Name": "LAr::DM::SectorEnvelopes2r",
"x": -1.736718203796568,
"y": -1263.348806272393,
"z": -166.75403155804725
where:

  • distance is the minimum estimated distance of the overlap
  • typeOfClash can be 0 for withMother, 1 for withSister, 2 for fullyEncapsSister, 3 for invalidSolid
  • x,y,z are the global coordinates of the point of impact in cm

Note

A solid is considered invalid, when it is the results of boolean operations that are “not safe” or wrong (i.e. summing up two solids that do not share any portion of their volumes). Usually an invalid solid is a solid for which it is not possible to correctly generate points on the surface. One example can be of a solidC that is the result of the subtraction of solidA - solidB, where solidB is bigger than solidA. This operation leads to a NULL volume that is considered as an invalid solid by gmclash.

The clash points can then be inspected and visualized together with the geometry in gmex.

Watch!

Watch the following video for a quick demo on how to visualize and debug clash points produced with gmclashin gmex!

Examples

To run gmclash one has to specify with the -g flag the geometry file (this is mandatory). By default gmclash writes out the clashes report in the gmclash_report.json file:

./gmclash -g mygeometry.db
To execute a clash detection on a geometry described with the SQLite file LArBarrel.db and write out the clashes report in the cr_LArBarrel.json file :
./gmclash -g LArBarrel.db -o cr_LArBarrel.json
To execute a clash detection on a geometry described with one of the GeoModelPlugins repo, i.e. HGTDPlugin and write out the clashes report in the cr_HGTD.json file :
./gmclash -g libHGTDPlugin.1.0.0.dylib -o cr_HGTD.json

To execute a clash detection on mygeometry.db starting from the root volume EndCap and increasing the number of random points to 10k:

./gmclash -g mygeometry.db -n 10000 -r EndCap -o cr_mygeometry_EndCap.json

How to visualize the gmclash clashes report in gmex

Once the json clashes report has been produced, it can be plugged into gmex together with the geometry file that it’s been inspected and visualized. In order to do that, it is sufficient to open the inspected geometry with gmex and then click on the Clash Points tab, push the Open button, and select the corresponding clash report file, as it can be seen in Figure 1.

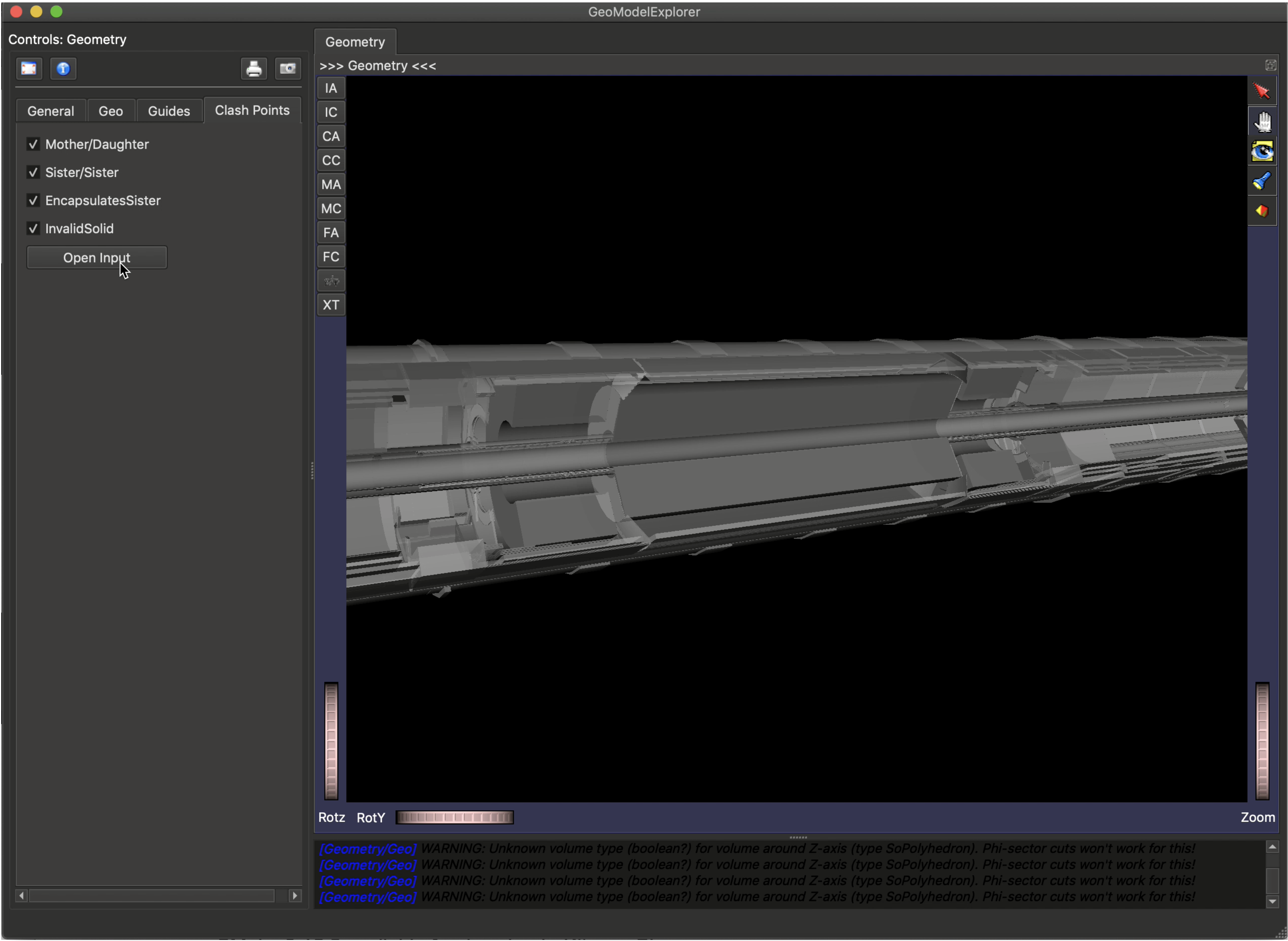

ClashPoints in gmex
Figure 1: How to load the clash points report file in gmex.

Once the clash report file has been opened, the clash points will be displayed in different colours (for the different types of clashes) together with the inspected geometry, like it can be seen in Figure 2.

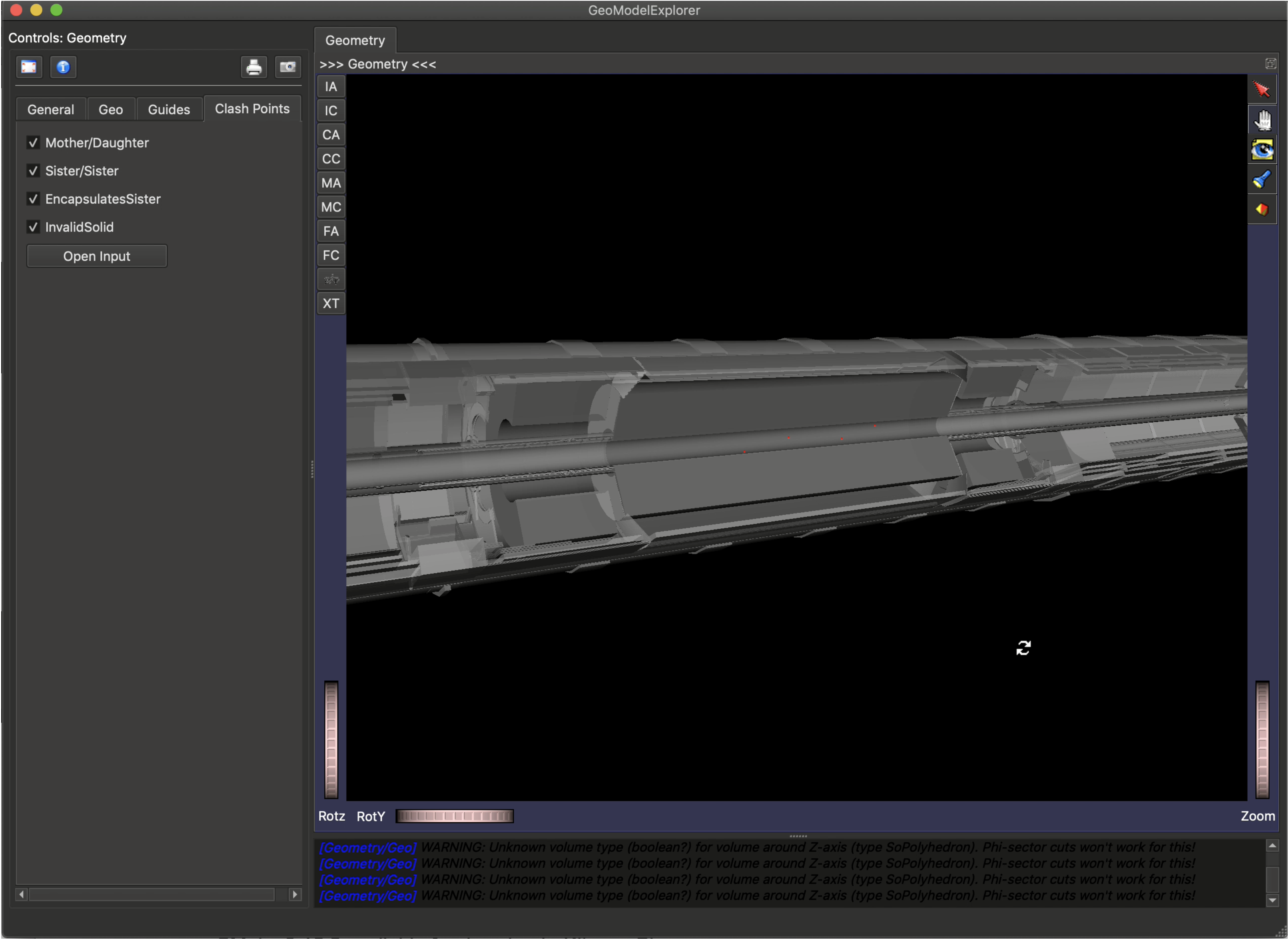

cp
Figure 2 : Clash points detected with gmclash and visualized in gmex.
